仿威图机柜保温柜的制作注意事项!

发布时间:2022-03-17 来源:http://www.tongyuhengcheng.com/ 浏览量:

1、仿威图配电柜保温柜其柜型结构,仍是在仿威图野外机柜的基础上演变而来,全体野外防水作用很好,密封性;
1. First of all, the cabinet type structure of the insulation cabinet of the imitation Rittal distribution cabinet is still evolved on the basis of the imitation Rittal field cabinet. All the field waterproof functions are very good and the sealing performance is excellent;
2、保温柜在野外运用的时候,一般多是在北方严寒的当地,冬天温度能到达零下20多度,甚更低!那么为了确保柜内元器件正常运转作业,必须要保持柜内一定的温度,方法有几种。一种是贴复铝箔保温棉,厚度一般在10-20mm以上,甚更厚。这种保温棉的保温作用很好,也可以再配一个加热器和一个温控器,泰予出产的仿威图加热器和温控器可以搭配运用,温控器设定好温度今后,当环境温度到达设定温度值时,加热器就开始作业,这样柜内部温度也会慢慢升高。
2. When the heat preservation cabinet is used in the field, it is usually in the cold place in the north. In winter, the temperature can reach more than minus 20 degrees, or even lower! In order to ensure the normal operation of components in the cabinet, it is necessary to maintain a certain temperature in the cabinet. There are several methods. One is to paste aluminum foil insulation cotton, which is generally more than 10-20mm thick or even thicker. This kind of thermal insulation cotton has good thermal insulation effect. It can also be equipped with a heater and a temperature controller. The imitation Weitu heater and temperature controller produced by Taiyu can be used together. The temperature controller sets the temperature. In the future, when the ambient temperature reaches the set temperature value, the heater will start to operate, so that the internal temperature of the cabinet will rise slowly.
3、有些保温柜在野外运用时,并不是装元器件,而是再里面装水管和压力表,阀门等。这种也是操控水站,或许其它什么水处理体系设备的,冬天温度低,不能让水管结冰冻住,这时候也需求给柜体进行保温或许加热。

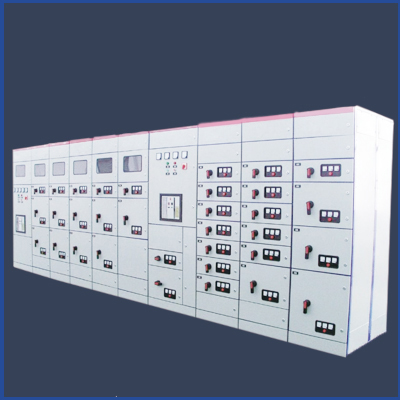

 MNS低压抽屉柜
3. When some insulation cabinets are used in the field, they are not equipped with components, but with water pipes, pressure gauges, valves, etc. This kind is also used to operate the water station or other water treatment system equipment. The temperature is low in winter, so the water pipe cannot be frozen. At this time, it is also necessary to heat the cabinet.
4、在制造仿威图机柜(保温柜)的时候,需求注意,柜内要尽可能的平整,除了非必要的接地螺柱以外,其它螺丝螺柱要尽可能的防止,因为内部越是平坦,后期贴保温棉就越方便,保温作用也越好。甚不需求运用野外机柜空调或许冷热交换器。
4. When manufacturing the imitation Rittal cabinet (insulation cabinet), it should be noted that the cabinet should be as flat as possible. Except for the unnecessary grounding studs, other screws and studs should be prevented as much as possible, because the more flat the interior is, the more convenient it is to paste insulation cotton in the later stage, and the better the insulation effect is. There is no need to use outdoor cabinet air conditioner or cold heat exchanger.
5、仿威图野外接线箱也可以做保温结构,原理都是相同的,只不过反面的挂墙附件,要直接焊接上去,不能运用通用规范的AE箱壁挂件
5. The imitation Weitu field junction box can also be used as thermal insulation structure, and the principle is the same, except that the wall hanging accessories on the opposite side should be directly welded, and the AE box wall hanging parts of general specifications cannot be used
6、其他的柜型,例如仿威图琴式操作台、PC电脑柜、工业电脑操控柜、铝合金悬臂体系、防水端子盒、PS九折型材柜、威图电柜等要想做保温结构,也可以考虑,但是在制造工艺上会比较复杂,这个要看详细的现场环境要求。
6. Other cabinet types, such as Vito piano like console, PC computer cabinet, industrial computer control cabinet, aluminum alloy cantilever system, waterproof terminal box, PS 10 fold profile cabinet, Vito electric cabinet, etc., can also be considered if they want to make thermal insulation structure, but the manufacturing process will be more complex, which depends on the detailed on-site environmental requirements.
