MNS低压抽屉柜的性能和应用环境

发布时间:2023-01-30 来源:http://www.tongyuhengcheng.com/ 浏览量:

MNS低压抽屉柜是按照转让技术制造的产品,适用于交流50(60)Hz,额定工作电压660V及以下的电力系统。用于发电、输电、配电、电能转换和电能消耗设备的控制。下面来讲MNS低压抽屉柜的性能和应用环境。
MNS low-voltage drawer cabinet is a product manufactured according to the transferred technology, and is applicable to the power system with AC 50 (60) Hz and rated working voltage of 660V and below. It is used for the control of power generation, transmission, distribution, power conversion and power consumption equipment. The performance and application environment of MNS low-voltage drawer cabinet are described below.
配电柜的基本柜架为组合式装配结构,柜架的全部结构件都经过镀锌处理,通过自紧螺钉和8.8级六角螺钉紧固,互相连接成基本框架,再按方案变化需要加上相应的门、封板、隔板、安装支架以及母线、功能单元等零部件组装成完整的成套设备。
The basic cabinet frame of the power distribution cabinet is a combined assembly structure. All structural parts of the cabinet frame are galvanized, fastened with self-tightening screws and Grade 8.8 hexagon screws, and connected to form a basic frame. Then, according to the change of the scheme, the corresponding doors, sealing plates, partitions, mounting brackets, buses, functional units and other components are added to form a complete set of equipment.
配电柜内零部件尺寸,隔室尺寸,实行模数化(模数单位E=25mm)。抽出式功能单元有五种标准尺寸:8E/4、8E/2、8E、16E、24E。功能单元隔室的总高度为72E。
The size of parts and components in the distribution cabinet and the size of the compartment shall be modular (modular unit E=25mm). The withdrawable functional unit has five standard sizes: 8E/4, 8E/2, 8E, 16E and 24E. The total height of the functional unit compartment is 72E.
抽出式功能单元与柜体具有机械联锁装置,使其满足操作要求,只有当主回路和辅助回路全部断开的状态下才能移动,机械联锁装置使抽屉具有试验位置,分断位置,连接位置和分离位置。应用范围
The withdrawable functional unit and the cabinet body are equipped with mechanical interlocking device to meet the operation requirements. They can only be moved when the main circuit and auxiliary circuit are all disconnected. The mechanical interlocking device enables the drawer to have the test position, breaking position, connection position and separation position. Scope of application
MNS型低压抽出式开关柜适用于发电厂、变电站、石油化工、冶金、轧钢、轻工纺织等厂矿企业和住宅小区、高层建筑等场所,作为交流50-60Hz,额定工作电压交流660V及以下的电力系统的配电设备的电能转换、分配及控制之用。
MNS low-voltage draw-out switch cabinet is applicable to power plants, substations, petrochemical, metallurgy, steel rolling, light industry and textile and other factories and mining enterprises, residential areas, high-rise buildings and other places, and is used for power conversion, distribution and control of power distribution equipment of power systems with AC 50-60Hz, rated working voltage AC 660V and below.

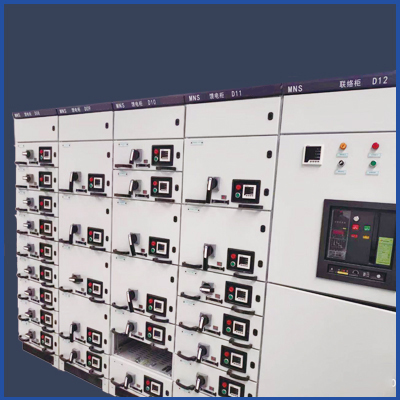

MNS低压抽屉柜
应用环境
application environment
周围空气温度不高於+40℃,不低於-5℃,并且4h内其平均温度不高於+35℃。大气条件,空气清洁,相对温度在Z高温度为+40℃时不超过50%,在较低温度时允计有较高的相对湿度,例如+20℃时为90%,但应考虑到由於测试变化,有可能会偶然地产生适度的凝露。
The ambient air temperature is not higher than+40 ℃, not lower than - 5 ℃, and the average temperature within 4 hours is not higher than+35 ℃. Atmospheric conditions: the air is clean, and the relative temperature is not more than 50% at the high temperature of+40 ℃ in Z, and the relative humidity is allowed to be higher at the low temperature, for example, 90% at+20 ℃. However, due to the test change, it should be considered that there may be occasional moderate condensation.
□本装置适应於以下温度的运输和储存过程:-25℃55℃的范围之间,在短时间内(不超过24h)可达+70℃,在这些极限温度下装置不应遭到任何不可恢复的损伤,而且在正常的条件下应能正常工作。您对此有需求就来我们网站http://www.tongyuhengcheng.com联系吧!
□ The device is suitable for the transportation and storage process of the following temperatures: within the range of - 25 ℃ to 55 ℃, it can reach+70 ℃ in a short time (no more than 24h). Under these extreme temperatures, the device should not be damaged irreparably, and it should be able to work normally under normal conditions. Come to our website if you need it http://www.tongyuhengcheng.com Contact me!
