双开门仿威图机柜防护等级分析!

发布时间:2021-10-25 来源:http://www.tongyuhengcheng.com/ 浏览量:

自动化仪表在目前各行各业中应用越来越宽泛,使用频率很高。双开门威图机柜针对仪表安装可以做更细致的优化,按防护等级划分,可分类为IP56高密封级,和IP54普通级。且配套的控制系统可以安装在内部镀锌板架构上,左右搭配冲孔纵梁,可支持子系统的扩装和分出。
At present, automatic instruments are more and more widely used in all walks of life. The double door Rittal cabinet can be more carefully optimized for instrument installation. According to the protection level, it can be classified into IP56 high sealing level and IP54 ordinary level. The supporting control system can be installed on the internal galvanized sheet structure, with punched longitudinal beams on the left and right, which can support the expansion and separation of subsystems.
一般仿威图控制柜宽度超过800mm的时候,我们机柜厂家就考虑做双开门了。实际上单开门的防护性能肯定是要比双开门更高的,但是如果门板超宽了,就必须要做双开门了,不然单门重量太大,有下垂风险。做双开门,使用特殊加工手段和工艺,也可以把密封性做很高的
Generally, when the width of imitation Rittal control cabinet exceeds 800mm, our cabinet manufacturer will consider making double doors. In fact, the protective performance of single door must be higher than that of double door, but if the door panel is too wide, double door must be made, otherwise the weight of single door is too large and there is a risk of sagging. Do double doors, using special processing methods and processes, you can also do a high degree of sealing
RITTAL控制柜本身强度很高,柜体与柜体之间还可以拼组,所以在行业内用量很大。夏季是钣金加工的艰难期,车间温度过高,工人生产效率变低。市场转而寻求标注的控制柜壳体现货,双开门配电柜需求量更高,无论是ES五折型材柜型还是PS九折型材架构的柜型,均可以做双开门电柜,制作前需要提前沟通好,对于柜体的密封防护要求。
Rittal control cabinet itself has high strength and can be assembled between cabinets, so it is widely used in the industry. Summer is a difficult period for sheet metal processing. The workshop temperature is too high and the production efficiency of workers becomes low. The market turns to the marked control cabinet shell to reflect the goods. The demand for double door power distribution cabinet is higher. Whether it is es 50% discount profile cabinet or PS 10% discount profile cabinet, it can be made as double door power cabinet. It needs to be communicated in advance before making, and the sealing and protection requirements for the cabinet body.
目前机柜焊接,还主要依靠人工进行氩弧焊和碰焊。那么后面,工厂将普及为自动化焊接工作站,由焊接机器人进行焊接。机器人焊接不仅美观,焊疤也十分均匀,且工作效率较人工能提高很多。
At present, argon arc welding and bump welding mainly rely on manual welding. Later, the factory will be popularized as an automatic welding workstation, which will be welded by welding robots. Robot welding is not only beautiful, the welding scar is also very uniform, and the working efficiency can be much higher than that of manual welding.

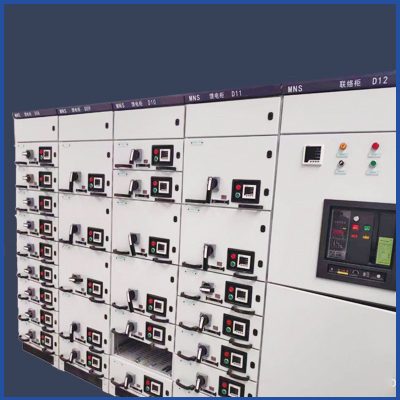

仿威图机柜
另外就是下料环节,目前下料还主要是用剪板机或者冲床进行下料。后期由机械手,进行取料,放料。不仅大大提高生产效率,还能避免由人工操作不当而引发安全事故。
Another is the blanking link. At present, blanking is mainly carried out by plate shears or punches. In the later stage, the manipulator will take and discharge materials. It can not only greatly improve the production efficiency, but also avoid safety accidents caused by improper manual operation.
其它包括装配,点胶,包装等等。其实都可以实现自动化操作,但这只是硬件方面,软件方面的建设也尤为重要。各个生产环节的同步与衔接,库存,物料的损耗及补充,指定时间窗口交付产品的保障等等。都需要一个成熟稳定的物联系统或者叫工厂生产管理系统,目前有个好消息就是5G网络的快速发展和普及,这必将大大推动万物互联时代的到来。
Others include assembly, dispensing, packaging, etc. In fact, automatic operation can be realized, but this is only the hardware, and the construction of software is particularly important. Synchronization and connection of various production links, loss and replenishment of inventory and materials, guarantee of product delivery within the specified time window, etc. We all need a mature and stable IOT system or factory production management system. At present, the good news is the rapid development and popularization of 5g network, which will greatly promote the arrival of the era of Internet of everything.
以上就是仿威图机柜http://www.tongyuhengcheng.com为大家介绍的内容,感谢您在百忙之中查看我公司的信息内容,如果您想要了解的更多,欢迎您来电进行咨询!
The above is the imitation Rittal cabinet http://www.tongyuhengcheng.com Thank you for checking the information of our company in your busy schedule. If you want to know more, you are welcome to call for consultation!
