电气成套设备都包括哪些大类?

发布时间:2021-10-06 来源:http://www.tongyuhengcheng.com/ 浏览量:

电气成套设备就是把一系列的电气元件,按照一定的规范组合在一起而形成的有机整体的电气设备。从大的方面来说,它们分为:成套开关设备、箱式变电站、电缆分支箱、变压器等。
A complete set of electrical equipment is an organic electrical equipment formed by combining a series of electrical components according to certain specifications. Generally speaking, they are divided into complete sets of switchgear, box type substation, cable branch box, transformer, etc.
1、成套开关设备。
1. Complete switchgear.
这里又分为高压成套开关设备,即高压开关柜、低压成套开关设备,即低压开关柜。
It is also divided into high-voltage switchgear, i.e. high-voltage switchgear and low-voltage switchgear, i.e. low-voltage switchgear.
高压开关柜的主要类型、型号有:KYN28A-12、GMXt6全绝缘环网柜、GMX375-550小型化开关柜、GMX65-12固体绝缘环网柜、HXGN15-12开关柜等。
The main types and models of high-voltage switchgear include kyn28a-12, gmxt6 fully insulated ring network cabinet, gmx375-550 miniaturized switchgear, gmx65-12 solid insulated ring network cabinet, hxgn15-12 switchgear, etc.
低压开关柜的型号主要有:ZMCS、MNS、GCK抽出式低压开关柜、GGD交流低压配电柜、ZMXL低压动力配电柜等。
The models of low-voltage switchgear mainly include: zmcs, MNS, GCK withdrawable low-voltage switchgear, GGD AC low-voltage distribution cabinet, zmxl low-voltage power distribution cabinet, etc.
2、箱式变电站。
2. Box type substation.
箱式变电站是当今主要的流行的变电站形式之一,以可移动、预制化、体积小等特点,在众多的变电场所得到应用。
Box type substation is one of the main popular forms of substation. It has been applied in many substation places with the characteristics of mobility, prefabrication and small volume.

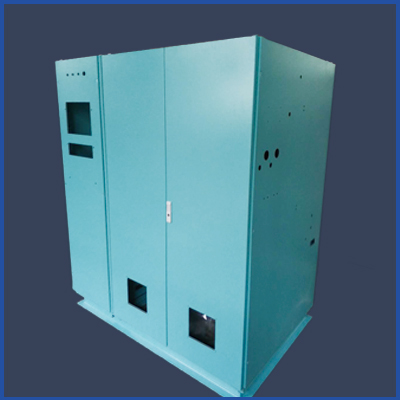

电气成套
箱式变电站的类型有:欧式箱变、美式箱变、小型化箱变、地埋式箱变、预制舱变电站等。其实小型化箱变、预制舱等是新一代、更加智能化的箱式变电站。
The types of box type substation include: European box type substation, American box type substation, miniaturized box type substation, buried box type substation, prefabricated compartment substation, etc. In fact, miniaturized box transformer and prefabricated cabin are a new generation and more intelligent box transformer substation.
3、电缆分支箱。
3. Cable branch box.
电缆分支箱类型有:DFW-12欧式电缆分接箱;DFW低压电缆分支箱;XGW-12~24kV环网箱(开闭所)。
Type of cable branch box: dfw-12 European cable branch box; DFW low voltage cable branch box; Xgw-12 ~ 24kV ring cage (switching post).
4、配电变压器。
4. Distribution transformer.
变压器是我们生活生产中,变压配电的重要的设备之一。从绝缘方式上分为干式、油浸式变压器。油浸式变电站型号为S11、S13,干式变压器为SCB10、SCB11、SCB12、SCB13.干式变压器一般用于户内、油浸式一般用于户外。
Transformer is one of the most important equipment for voltage transformation and distribution in our life and production. In terms of insulation mode, it is divided into dry-type and oil immersed transformers. The models of oil immersed substations are S11 and S13, and the dry-type transformers are scb10, scb11, scb12 and scb13. The dry-type transformers are generally used indoors and the oil immersed transformers are generally used outdoors.
电气成套设备的供应。
Supply of complete electrical equipment.
因每个项目的配电的参数各不一样,所以每个电气设备的都对应一个配电项目。而成套电气设备的供应基本上都是按照客户的需要而个性化定制的。由客户咨询进而发来电气图纸,厂家根据其进行报价、制造、安装出厂。
Because the distribution parameters of each project are different, each electrical equipment corresponds to a distribution project. The supply of complete sets of electrical equipment is basically customized according to the needs of customers. The customer consults and then sends the electrical drawings, and the manufacturer quotes, manufactures, installs and leaves the factory according to them.
