低压抽屉柜使用方法有哪些?

发布时间:2022-03-14 来源:http://www.tongyuhengcheng.com/ 浏览量:

一、拔出推进时操作应注意的事项:1/4抽屉与1/2抽屉(黑色的):
1、 Precautions during pulling out and pushing: 1 / 4 drawer and 1 / 2 Drawer (black):
当把抽屉向里面推进时,在抽屉推进前,先把抽屉放平,在滑轨上来回推动几下,确认已落槽,再推进。(若没落槽,就推进后,该抽屉将很难再拉出来,因抽屉两边的镶嵌的隔板卡住柜体框架而拔不出来,会毁坏抽屉两边的隔板和一次插件)
When pushing the drawer inward, before pushing the drawer forward, put the drawer flat, push it back and forth on the slide rail for a few times, confirm that it has fallen into the slot, and then push it forward. (if there is no slot, it will be difficult to pull out the drawer after pushing it forward. Because the inlaid partitions on both sides of the drawer block the cabinet frame and cannot be pulled out, the partitions and primary plug-ins on both sides of the drawer will be damaged)
处理方法:
Treatment method:
1、将上下两抽屉拔出,用长螺丝刀通过缝隙压迫镶嵌板的卡住点,再拔出,如果硬拉出,将不可避免导致抽屉框架的损坏。
1. Pull out the upper and lower drawers, press the clamping point of the mosaic plate through the gap with a long screwdriver, and then pull it out. If it is pulled out hard, it will inevitably lead to the damage of the drawer frame.
因开机或正常运行时,上下两抽屉难免都在运行,可能不允许拔出抽屉,故处理比较麻烦,所以送电时要注意该方法的运用,做到心急而手不急,按正常顺序操作,减少故障时间,避免影响生产
Since both the upper and lower drawers are inevitably running during startup or normal operation, it may not be allowed to pull out the drawer, so it is troublesome to deal with it. Therefore, pay attention to the application of this method during power transmission, so as to be in a hurry but not in a hurry. Operate according to the normal sequence, reduce the failure time and avoid affecting the production
2、在抽屉推进时,距合上位置15CM左右时,用23磅的力推进即可。切忌抽屉的全行程猛推,这样极易损坏抽屉;如用力太小,又不易推进到位。
2. When pushing the drawer, push it with a force of 2 to 3 pounds when it is about 15cm away from the closing position. Never push the whole stroke of the drawer, which is very easy to damage the drawer; If the force is too small, it is not easy to push in place.
3、在抽屉推进后的操作顺序:旋转旋钮(黑色)到试验位置 按绿色启动按钮启动(如接触器吸合,运行指示灯亮,说明完好) 然后按住旋钮(垂直旋钮轴心微用力直接旋转到运行位置,旋钮的红线是垂直方向);
3. Operation sequence after the drawer is pushed: rotate the knob (black) to the test position, press the green start button to start (if the contactor is closed, the operation indicator light is on, indicating that it is intact), and then press and hold the knob (the vertical knob axis rotates directly to the operation position with slight force, and the red line of the knob is the vertical direction);
如果不用力按住旋钮,将会撑坏按钮,导致无法送电;打旋钮送电时,有时会出现难以旋动, 此时要检查抽屉是否旋转到位。外观看,抽屉框架与柜体框架是否合缝,即使有小小的12MM的距离都不行。
If you don't press and hold the knob hard, the button will be broken, resulting in failure of power transmission; When turning the knob to send power, it is sometimes difficult to rotate. At this time, check whether the drawer rotates in place. From the outside, check whether the drawer frame and cabinet frame are jointed, even if there is a small distance of 1 to 2mm.

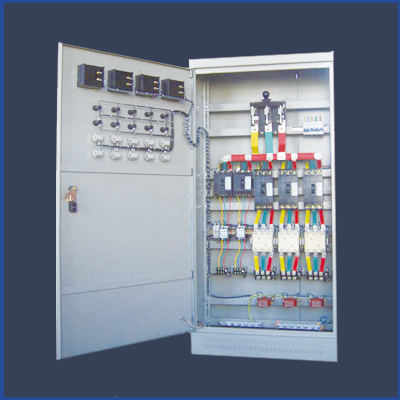

 MNS低压抽屉柜
二、大抽屉
2、 Large drawer
1、上述2,3也是其注意点。
1. The above 2 and 3 are also the points of attention.
2、在推进时,也要试拉几下,这是因抽屉后面的二次插头和一次主插头与框架母体插接不对,(这在抽屉因故障更换时要注意,这是因为这些抽屉后面的插接头布置的类型有不同)。
2. When pushing, try pulling a few times, because the secondary plug and primary main plug behind the drawer are not properly connected with the frame matrix (pay attention when replacing the drawer due to failure, because the types of connectors behind these drawers are different).
3、有时在往外拔出抽屉时,拔不出来,应稍稍向上用力提一下,再往外拉出(当然是同时进行的),如在框架上端的抽屉,就因为往往忽略了这一点,而难以拔出。
3. Sometimes when the drawer cannot be pulled out, it should be lifted up slightly and then pulled out (of course, at the same time). For example, the drawer at the upper end of the frame is difficult to pull out because this point is often ignored.
4、对于二次旋钮的操作与1/4抽屉与1/2抽屉3的操作方式一样。要记住的是只有当二次旋钮达到运行位置时,才能把一次开关的旋钮推到运行位置,否则会损坏一次开关的旋钮而送不上电。
4. The operation of secondary knob is the same as that of 1 / 4 drawer and 1 / 2 Drawer 3. Remember that only when the secondary knob reaches the operating position can the knob of the primary switch be pushed to the operating position, otherwise the knob of the primary switch will be damaged and power will not be supplied.
5、抽屉打不开来,主要是旋纽旋不过来的问题。
5. The drawer can't be opened, mainly because the knob can't rotate.
这是个主要的问题,假设坏的情况下:此时的抽屉往往是合闸状态,且又处于故障下,而生产又急于要求恢复送电开启。
This is the most important problem. Suppose the worst case: at this time, the drawer is often closed and in fault, and the production is eager to restore power transmission and open.
⑴、认识上,对于旋纽的指示位置不要过于迷信,因为它毕竟只是个机械连锁,可通过不断旋转两个旋纽位置(远控、就地旋纽;和主开关旋纽),其位置可以试着稍稍偏离一点,再试行打开,一般打开都没有问题。
(1) in terms of cognition, don't be too superstitious about the indicated position of the knob, because it is only a mechanical chain after all. By constantly rotating the two knob positions (remote control, local knob; and main switch knob), its position can be slightly deviated, and then try to open it. Generally, there is no problem in opening it.
⑵、若遇到确实打不开的抽屉,而生产又催得比较急的情况。
(2) if the drawer cannot be opened and the production is in a hurry.
其快速复位送电的操作步骤:
The operation steps of fast reset and power transmission:
a:在远程、就地旋纽旁边的有一小孔(右下方),用小螺丝刀伸进小孔向下压挡板。
a: There is a small hole next to the remote and local knob (lower right). Use a small screwdriver to extend into the small hole and press the baffle down.
b:在一次关左侧有一小孔,同样用另一小螺丝刀伸进去顶开。
b: There is a small hole on the left side of one-time closing. Similarly, use another small screwdriver to push it in and open it.
c:两螺丝刀同时用力解锁,打开抽屉门。
c: Unlock with two screwdrivers at the same time and open the drawer door.
d:手动调整一次开关前面连杆(有时往往打不开,就是因为该处连杆卡住)断开主开关。
d: Manually adjust the connecting rod in front of the primary switch (sometimes it can't be opened because the connecting rod is stuck) to disconnect the main switch.
e:再确认主开关下方的机械连杆是否已释放到位,若没到位,活动一下即可。
e: Then confirm whether the mechanical connecting rod under the main switch has been released in place. If not, move it.
f:旋开二次开关按钮,抽出位置
f: Unscrew the secondary switch button to the safe extraction position
g:抽出抽屉,然后复位,恢复送电。
g: Draw out the drawer, reset it and restore power transmission.
h:只有一次开关与二次开关啮合到位抽屉才能抽拉自如、开关才能旋转流畅。
h: Only when the primary switch and the secondary switch are engaged in place, the drawer can be pulled freely and the switch can rotate smoothly.
